The top skirt drawing without dimensions; shown in red the bull nose treated Rhino Water Proofing.

The second skirt drawing with dimensions also illustrates the triangle cuts that fit with the concrete chamfers on the columns.

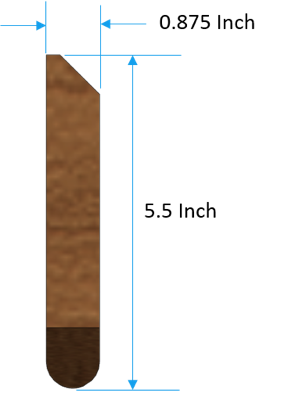

The bottom illustration, shows the side profile of the skirt. The profile shows the water shed at the top, and the bull nose water shed that also minimizes ground contact and mitigates wicking.

The Rhino Water Proofing on the bottom of the skirt color does not match the panel.
